Android upgrade for the Jaguar XJ X350/358, S-Type and X-Type

  • Main
  • Contents
    • Touchscreen hardware modification
    • Video board programming and modification
    • Arduino and opto-isolator
    • Control board wiring
    • Control board installation
    • LCD panel and touchscreen
    • Programming and testing
    • Advanced CD aux-in modification
  • System Operation Guide
  • JagDroid Installation (Version 5.1)
  • Next Steps
  • Odroid N2 configuration
    • Registering the Odroid N2 with Google Play
  • Radio system removal instructions
  • Packaging guidelines
  • Reverse camera installation
  • Jagdroid-CD Bluetooth upgrade
  • Jagdroid-Cassette Bluetooth upgrade
  • Troubleshooting
  • Odroid N2 configuration – Official ROM
  • Odroid OS image flashing

Contents

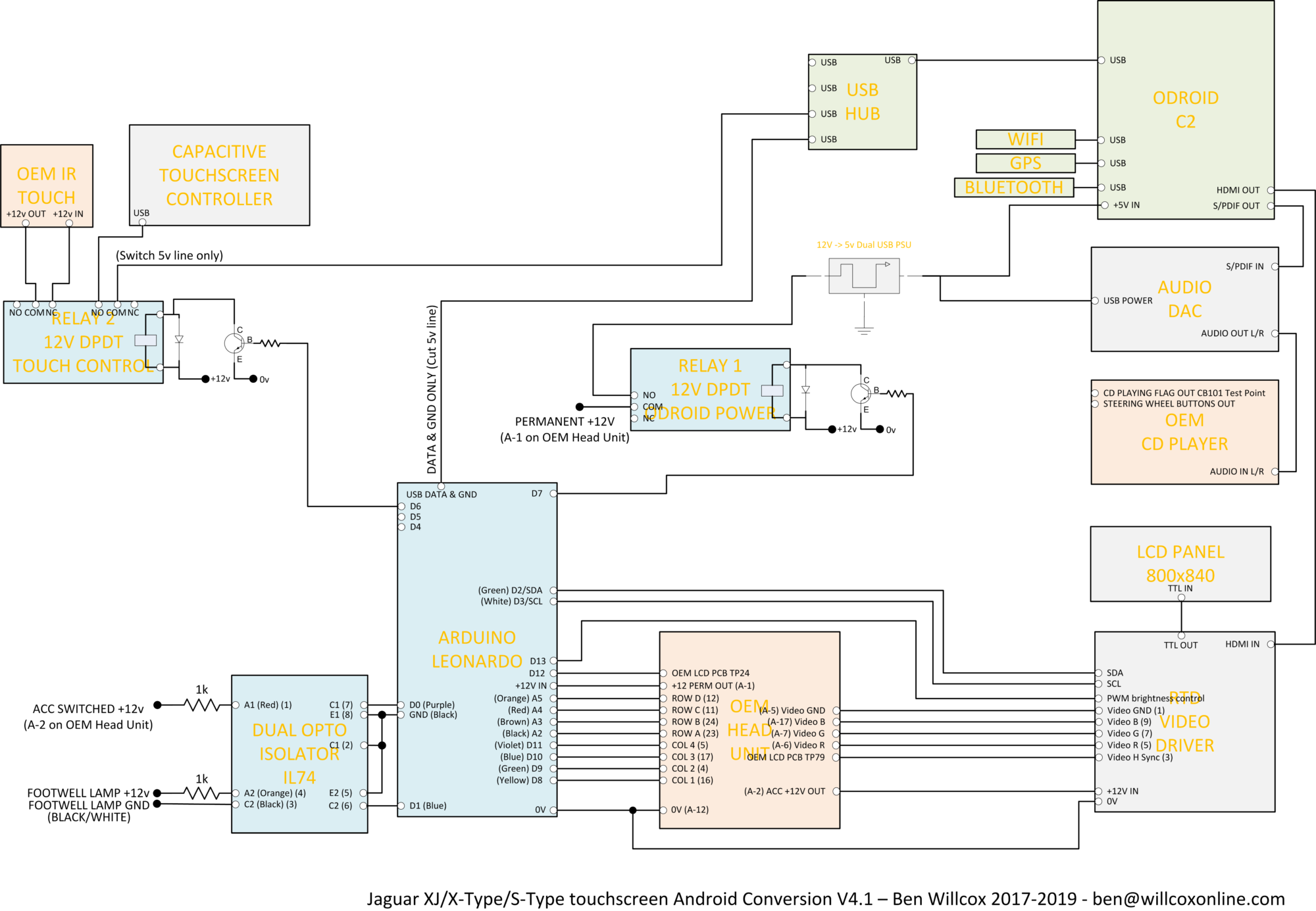

This is a high-level diagram showing how all the various component parts of the system interconnect:

Follow the steps below:

  1. Touchscreen hardware modification
  2. Video board programming and modification
  3. Arduino and opto-isolator
  4. Control board wiring
  5. Control board installation
  6. LCD panel and touchscreen
  7. Programming and testing
  8. CD player aux-in modification
